Customized Fixtures
![pi_new_img](http://en.edadoc.com/upload/images/product/20220822/16611498327526173.png)

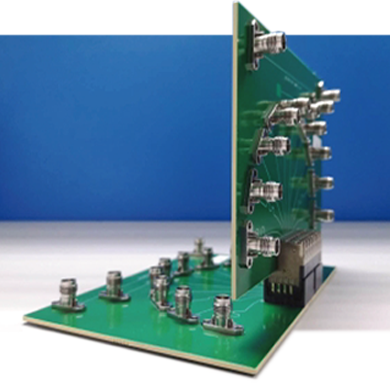

The fixtures have been customized according to the customer’s test requirements:
1. User-defined backplane/connector, domestic and foreign discrete resistance, capacitance and inductance devices, self-developed chips, cables and other test fixtures
2. Conform to the test standard and accurately measure the performance of the customer's object to be tested
3. TRL/ISD/AFR and other methods can be selected according to the test scenario, which can remove the impact of the fixture. The embedding accuracy: back loss -40dB@67GHz, insertion loss ± 0.1dB@67GHz
![Domestic discrete device test fixture](http://en.edadoc.com/upload/images/product/20230317/16790386537459982.png)

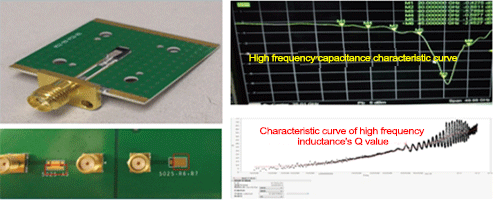

Domestic discrete device test fixture
![16611498675042678](http://en.edadoc.com/upload/images/product/20230424/16823250422323605.jpg)

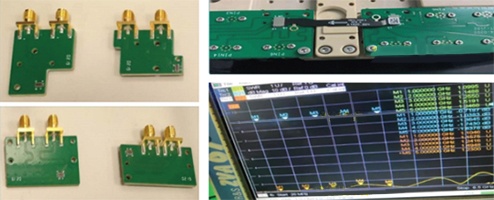

5G antenna connector clamp test
Embedded Precision & Test Precision
![16611498687078605](http://en.edadoc.com/upload/images/product/20230317/16790353261439339.png)

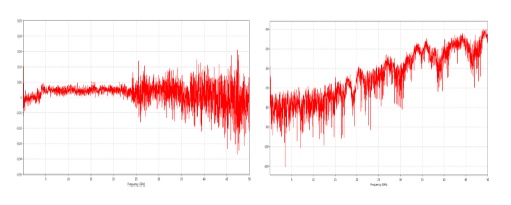

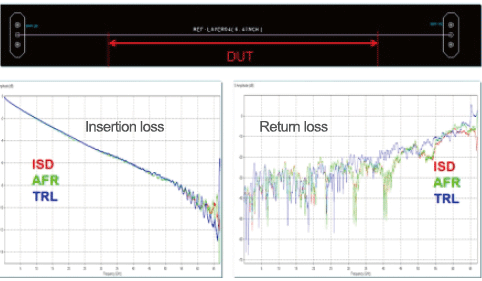

Comparison of De-Embedding Methods
The Device Under Test (DUT) measurement of the product can be realized by using a variety of different embedding methods, which can ensure more accurate results
![16611498676155798 (1)](http://en.edadoc.com/upload/images/product/20220915/16632379335129003.jpg)
TRL Calibration Accuracy
TRL de-embedding accuracy shall be 50Ghz+, IL shall be less than ± 0.1db, and RL shall be less than - 35db.

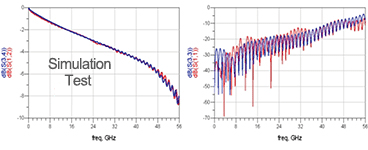

Imitation Calibration Case
![jc_img5](http://en.edadoc.com/upload/images/product/20220822/16611498678023209.jpg)
Simulation test fitting with SMA head
![Insertion loss back loss fitting](http://en.edadoc.com/upload/images/product/20230317/16790355706334120.png)
Insertion loss back loss fitting

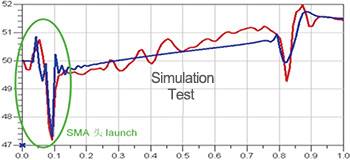

![TDR impedance fitting](http://en.edadoc.com/upload/images/product/20230317/16790355787801918.png)
TDR impedance fitting
